Release Note | Voyager 2.5
Firmware Voyager 2.5
A new firmware package is available in November 2023, including significant new features and improvements. In this version, Voyager introduces functionalities of a Sound Level Meter, real-time sound intensity phase direction, and enhanced device calibration.
What's new

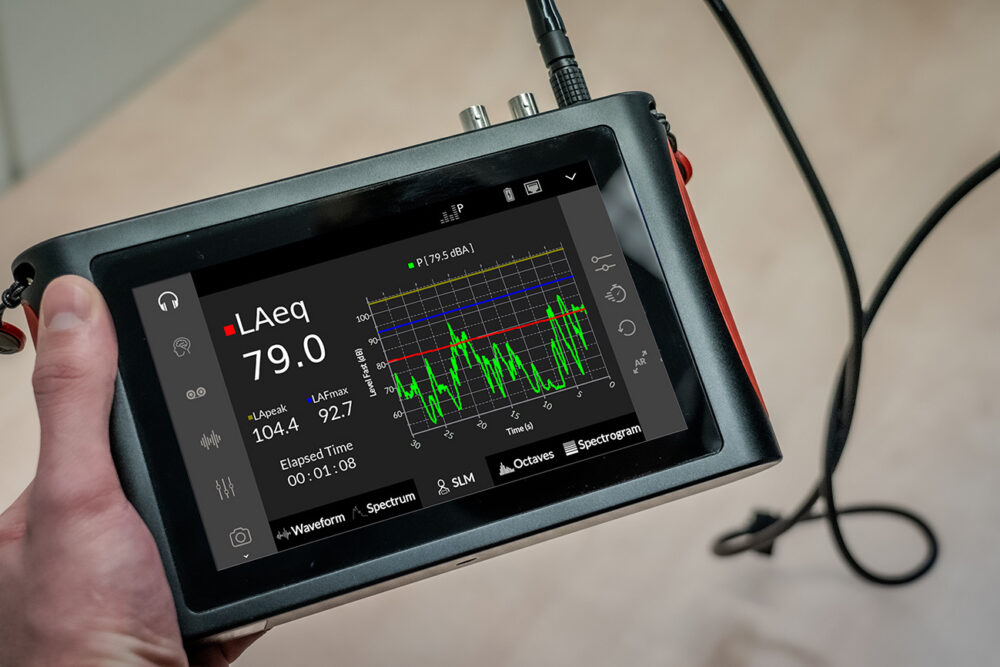

- Sound Level Meter tab - LXeq, Instantaneous time-weighted levels, LXpeak and LXYmax are displayed in real-time; X being the Frequency weighting, such as A, B, C, D, and Z (none) and Y being the time weighting, Slow (S), Fast (F) and Impulse (I).
- Sound Intensity Phase orientation - when selecting sound intensity at the Octave bands tab, the user will be able to differentiate the phase direction of the sound field. Green bars are used to denote positive intensity and grey bars for negative sound intensity.
- Enhanced Device calibration - every device is now calibrated with a high-accuracy reference signal generator complying with ISO-17025.
- A button for selecting all files was introduced at the file conversion tab for both audio and snapshots.
- The camera shutter button was relocated to the bottom right side of the screen.
- In the sensor calibration tab, the calibration process of Microflown probes is simplified to focus on 1000 Hz.
Upgrade to Voyager 2.5
Run the downloaded file and follow the instructions to update your Voyager. If you encounter any difficulties, please do not hesitate to contact us or your local distributor, we will guide you through the updating process.
